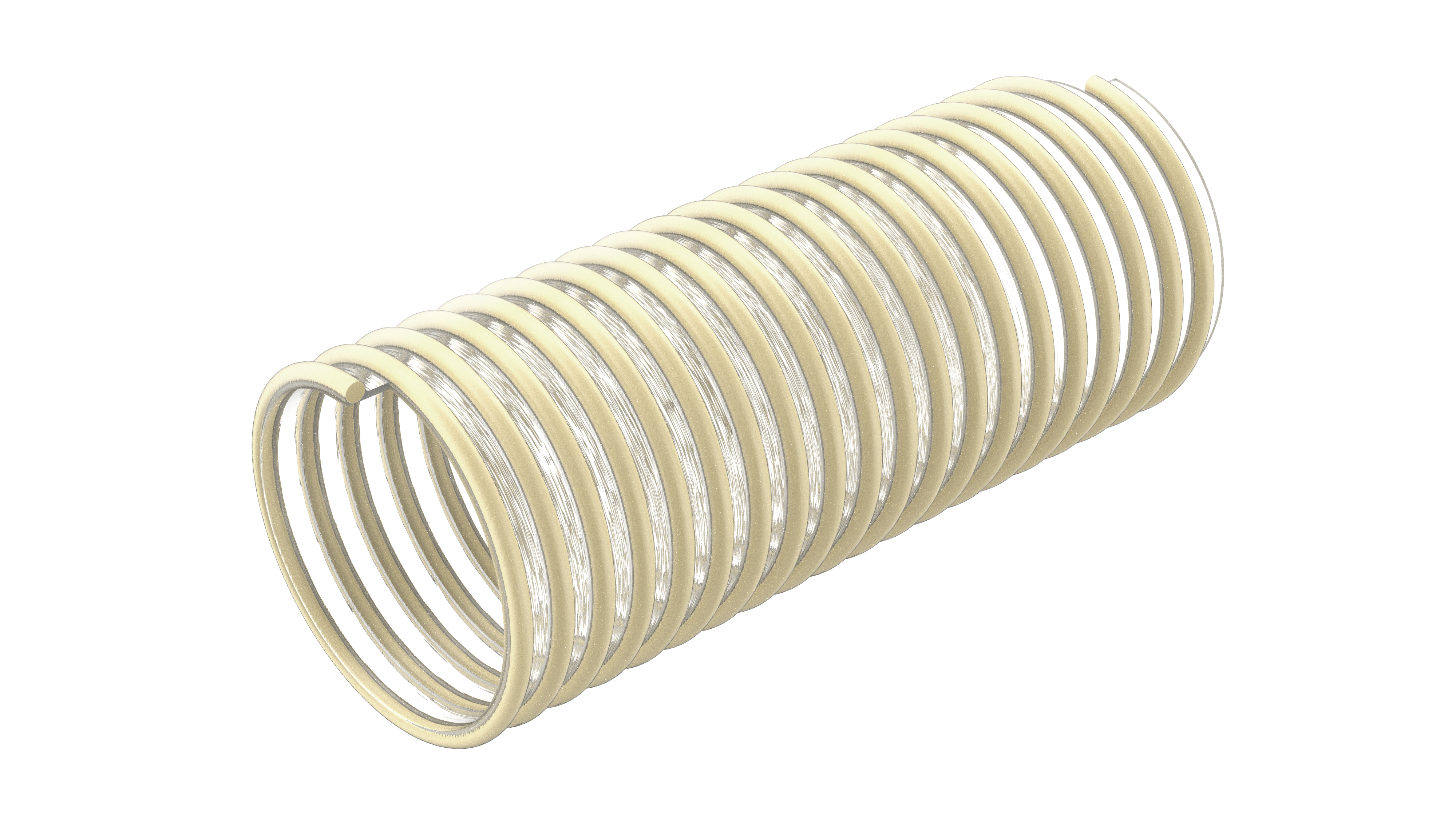

Transparent tube with wall entirely in ether-based TPU with ivory-coloured shockproof rigid PVC reinforcement spiral. The inside is perfectly smooth while the outside is corrugated. Eolo PUP Food enjoys high mechanical characteristics, very light and flexible, notable resistance to abrasion, bending, microbes and hydrolysis. Antistatic version with copper cord also available on request.
COLOR: transparent ivory spiral
TEMPERATURE OF USE: - 40°C + 80°C
FIELDS OF APPLICATION: for the suction of dust, seeds, flour, sugar, grains and abrasive food substances and also used in aquaculture, for the passage of fish. In agriculture, used on seed drills, combined machines and agricultural vehicles in general. Available on request in antistatic version.
Food grade according to FDA CFR 21-Item 177.2600 and according to EU Reg. 10/2011 (classes A, B, C and D2, E).
Internal diameter (mm) |
Min. Thickness(mm) |
Max thickness(mm) |
Weight(g/m) |
Depression (m h2o) |
Curvature radius(mm) |
22 |
0,8 |
3,3 |
190 |
3,5 |
80 |
25 |
0,8 |
3,3 |
220 |
3,5 |
80 |
30 |
0,8 |
3,3 |
260 |
3,5 |
100 |
31,8 |
0,8 |
3,3 |
270 |
3 |
110 |
35 |
0,8 |
3,5 |
300 |
3 |
120 |
38,1 |
0,8 |
3,5 |
320 |
3 |
130 |
39 |
0,8 |
3,5 |
330 |
3 |
135 |
40 |
1 |
3,6 |
370 |
3 |
140 |
45 |
1 |
3,9 |
470 |
3 |
160 |
50 |
1 |
4,3 |
570 |
3 |
175 |
50,8 |
1 |
4,3 |
580 |
3 |
175 |
55 |
1 |
4,3 |
630 |
3 |
190 |
60 |
1 |
4,3 |
680 |
3 |
200 |
63,5 |
1 |
4,3 |
720 |
3 |
230 |
65 |
1 |
4,3 |
740 |
3 |
230 |
70 |
1 |
4,8 |
800 |
3 |
250 |
76,2 |
1 |
4,8 |
870 |
2,5 |
270 |
80 |
1 |
5,2 |
970 |
2,5 |
290 |
90 |
1 |
5,4 |
1140 |
2,5 |
360 |
100 |
1 |
5,9 |
1340 |
2,5 |
400 |
102 |
1 |
5,9 |
1360 |
2,5 |
400 |
110 |
1 |
6,1 |
1480 |
2,5 |
440 |
120 |
1 |
6,1 |
1610 |
2,5 |
470 |
127 |
1 |
6,1 |
1700 |
2,5 |
500 |
130 |
1 |
6,1 |
1740 |
2,5 |
520 |
140 |
1 |
6,2 |
1910 |
2 |
570 |
151,5 |
1 |
6,6 |
2130 |
2 |
600 |
152,4 |
1 |
6,6 |
2140 |
2 |
600 |
160 |
1 |
7,4 |
2310 |
2 |
600 |
180 |
1 |
7,4 |
2590 |
0,4 |
250 |
203,2 |
1,2 |
9,4 |
3180 |
1 |
400 |
254 |
1,2 |
9,4 |
3950 |
1 |
500 |
304,8 |
1,2 |
9,4 |
4710 |
0,8 |
610 |
