Polyurethane WKL

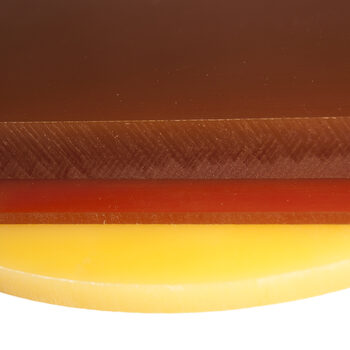

WKL Polyurethane is available in sheets of 3000x500mm each or in rounds.
This material has different characteristics such as:
- Abrasion resistance
- Resilience
- Resilience to compression
- Resistance to temperatures, both cold and hot, not exceeding 100 °C
- Water resistance
- Mechanical properties, thanks to its low friction coefficient, polyurethane lends itself to being cut, turned, sawn or glued
- Insulating properties

Possibility of creating customized products.

PLATES
Thickness(mm)	Minimum weight(kg)
1,0 ± 0,2	1,560
1,5 ± 0,2	2,540
2,0 ± 0,2	3,520
3,0 ± 0,3	5,280
4,0 ± 0,3	7,240
5,0 ± 0,3	9,190
6,0 ± 0,3	11,150
7,0 ± 0,4	13,200
8,0 ± 0,4	14,870
9,0 ± 0,4	17,840
10,0 ± 0,4	18,780
12,0 ± 0,4	22,700
15,0 ± 0,5	28,370
18,0 ± 0,5	34,240
20,0 ± 0,5	38,160

BAR
Diameters and tolerances (mm)	Minimum weight (kg)	Length (mm)
15 ± 0,3	0,110	500
20 ± 0,3	0,190	500
25 ± 0,3	0,300	500
30 ± 0,3	0,430	500
35 ± 0,4	0,590	500
40 ± 0,4	0,750	500
45 ± 0,4	0,980	300
50 ± 0,4	1,200	500
55 ± 0,5	1,470	500
60 ± 0,5	1,740	500
70 ± 0,5	2,370	500
80 ± 0,5	3,090	500
90 ± 0,5	3,970	500
100 ± 0,5	4,850	500
120 ± 1,0	6,920	300
150 ± 1,0	10,800	500
180 ± 1,0	15,500	300
200 ± 1,0	19,200	170

Characteristics	Name	55	60	65	70	75	80	85	90
Hardness Sh A	ASTM D 2240	57	60	65	70	75	80	85	90
Density gr/cm³	DIN 53475	1,24	1,24	1,25	1,25	1,25	1,25	1,25	1,26
Elongation %	ASTM D 412 C	700	650	620	600	550	550	500	480
Load at break kg/cm²	ASTM D 412 C	280	300	330	350	370	390	400	420
Resistance to tearing Kg/cm	ASTM D 624 B	50	60	70	80	85	90	95	100
Abrasion mm³	DIN 53516	55	50	48	48	48	46	44	42
Resilience	ASTM D 945	46	47	47	48	48	50	51	52
Permanent deformation 70 h t.a.	ASTM D 395 B	10	10,5	10	11	12	12	13	12
Permanent deformation 22 h A 70°C	ASTM D 395 B	22	23	24	25	25	26	26	26
