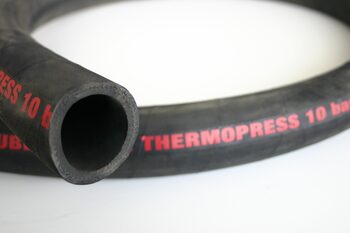

Tube: black, smooth, EPDM rubber compound without NITROSAMINE, heat resistant.
Inserts: synthetic textiles.
Cover: smooth, black EPDM rubber-based compound without NITROSAMINE, resistant to heat, aging and atmospheric agents.
Use: Suitable for delivery of hot water, mixed with steam and non-corrosive hot fluids up to a temperature of +120 °C.
It is used in the connection of boilers with convectors, air conditioners or nozzles for washing containers and work equipment with hot water.
Operating temperature: from -40°C to maximum peaks of +120°C
Internal diameter (mm) |
Outer diameter (mm) |
Operating pressure (bar) |
burst pressure (bar) |
weight (kg/m) |
radius of curvature (mm) |
12 |
22,5 |
10 |
40 |
0,38 |
120 |
15 |
25,5 |
10 |
40 |
0,44 |
150 |
18 |
28,5 |
10 |
40 |
0,51 |
180 |
20 |
30,5 |
10 |
40 |
0,56 |
200 |
25 |
35 |
10 |
40 |
0,61 |
250 |
30 |
41 |
10 |
40 |
0,79 |
300 |
40 |
54 |
10 |
40 |
1,34 |
400 |
50 |
68 |
10 |
40 |
2,12 |
500 |
60 |
82 |
10 |
40 |
3,10 |
600 |
