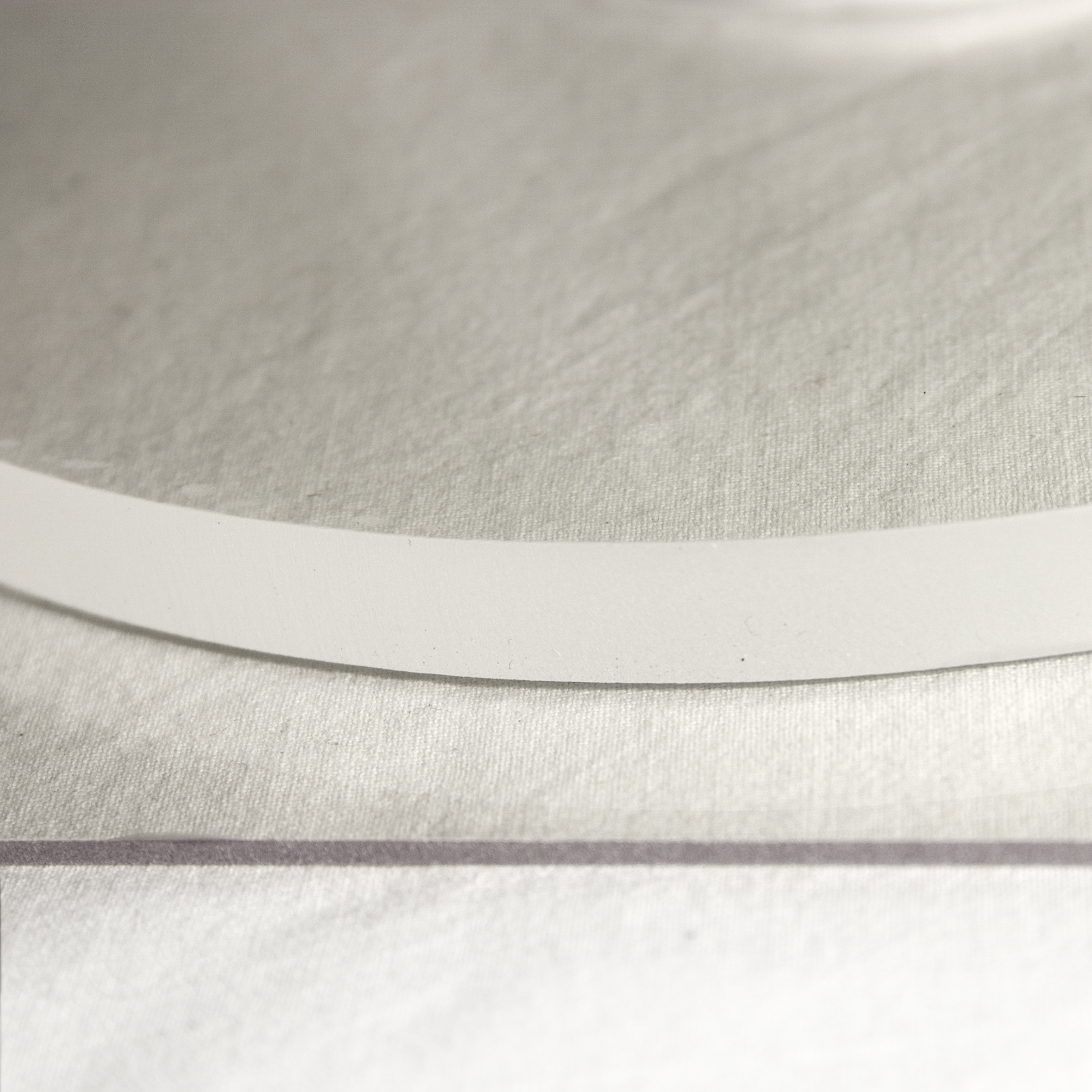

The characteristics present simultaneously in the compact polycarbonate sheets make them a single product in guaranteeing high qualities of transparency, resistance to impacts and mechanical stress, workability and adaptability to various solutions, with exceptional chemical-physical stability over time.
Fireproof characteristics: self-extinguishing
AVAILABLE FORMATS:
Plates
Dimention 2050x3050mm
thickness: 0,75mm - 1mm - 1,5mm - 2mm - 3mm - 4mm - 5mm - 6mm - 8mm - 10mm - 12 mm
Bars
Diameter: da 10mm a 200mm fornibili in barre da mt 3.
Thermal transmission: Polycarbonate PC has considerably less heat loss than glass.
Test method: DIN 53479 for the physical characteristics - DIN 53455 for the mechanical characteristics - DIN 53461 for the thermal characteristics.
Density (g/cm³) |
1,19 |
Light transmission(%) |
90 |
Tensile strength (MPa) |
69 |
Flexural strength(MPa) |
97 |
Elasticity modulus (MPa) |
2300 |
Short-term operating temperature (°C) |
140 |
Long-term operating temperature (°C) |
120 |
Thermal conductivity(W/(K*m)) |
0,25 |
